Deploy with CloudFormation and Operation Verification

This document describes how to deploy sample code from this catalog using AWS CloudFormation and perform operation verification. We will deploy resources to AWS using AWS CloudFormation.

Deployment Configuration​

Deployment Procedure​

1. Create IAM Role for Deployment​

Create an IAM role with the following IAM policy applied and attach it to the EC2 instance that will execute AWS CloudFormation deployment.

Contents of IAM Policy used when creating CloudFormation stack
{
"Version": "2012-10-17",
"Statement": [
  {
      "Effect": "Allow",
      "Action": [
          "lambda:AddPermission",
          "lambda:CreateFunction",
          "lambda:DeleteFunction",
          "lambda:GetFunction",
          "lambda:GetFunctionCodeSigningConfig",
          "lambda:GetFunctionRecursionConfig",
          "lambda:GetPolicy",
          "lambda:GetRuntimeManagementConfig",
          "lambda:RemovePermission"
      ],
      "Resource": "*"
  },
  {
      "Effect": "Allow",
      "Action": [
          "apigateway:POST",
          "apigateway:GET",
          "apigateway:PUT",
          "apigateway:PATCH",
          "apigateway:DELETE"
      ],
      "Resource": "*"
  },
  {
      "Effect": "Allow",
      "Action": [
          "lambda:DeleteLayerVersion",
          "lambda:GetLayerVersion",
          "lambda:PublishLayerVersion"
      ],
      "Resource": "*"
  },
  {
      "Effect": "Allow",
      "Action": [
          "s3:CreateBucket",
          "s3:DeleteBucket",
          "s3:PutBucketNotification"
      ],
      "Resource": "*"
  },
  {
      "Effect": "Allow",
      "Action": [
          "iam:CreateRole",
          "iam:DeletePolicy",
          "iam:CreatePolicy",
          "iam:CreatePolicyVersion",
          "iam:AttachRolePolicy",
          "iam:DeleteRolePolicy",
          "iam:DetachRolePolicy",
          "iam:PutRolePolicy",
          "iam:GetRole",
          "iam:DeleteRole",
          "iam:UpdateRole",
          "iam:PassRole"
      ],
      "Resource": "*"
  }
]
}

2. VPC Deployment​

First, execute CloudFormation deployment using aws-cli to deploy VPC. After executing the command, wait for deployment success from AWS Management Console. Please enter your preferred values for --stack-name, AppName, and EnvName according to your environment

[ec2-user ~]aws cloudformation create-stack \
--region us-east-1 \
--stack-name vpc \
--template-body file://deploy/cloudformation/vpc.yaml \
--parameters \
ParameterKey=AppName,ParameterValue=myapp \
ParameterKey=EnvName,ParameterValue=dev \
--capabilities CAPABILITY_NAMED_IAM

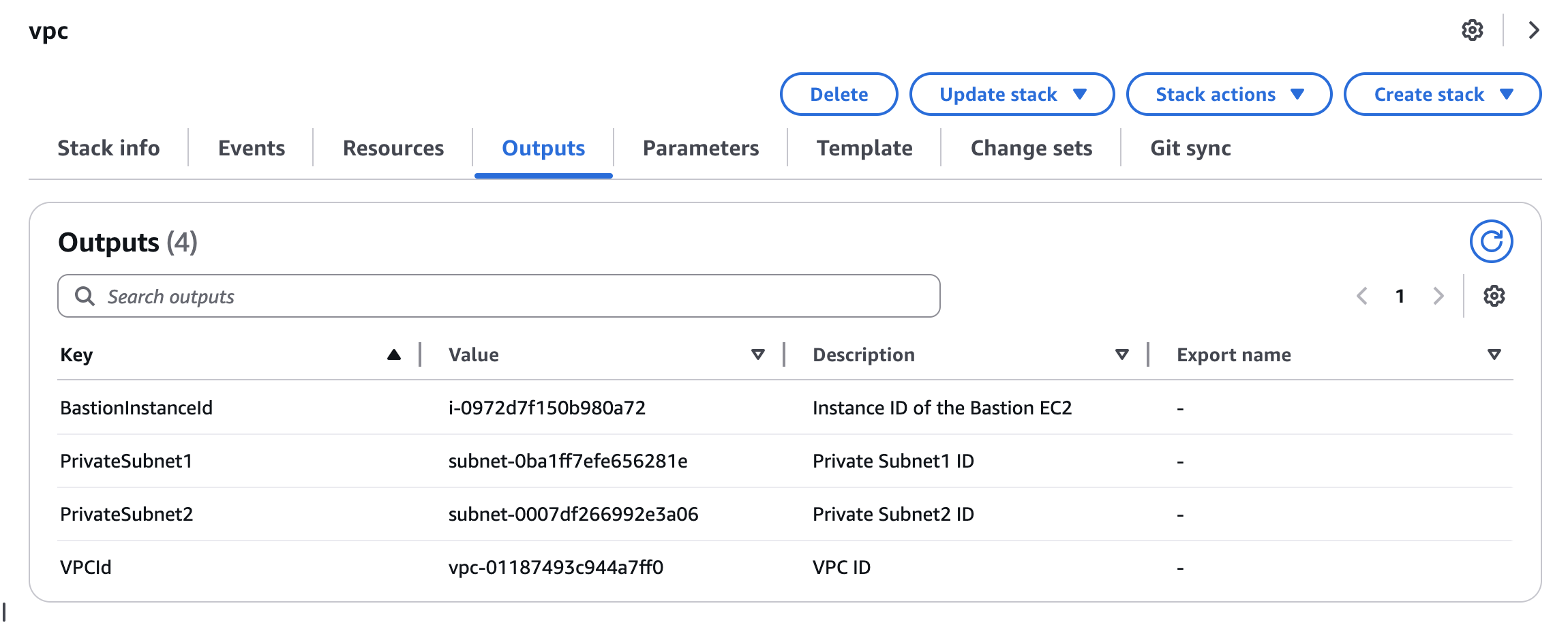

After deployment completion, open the output tab in Management Console and check the following values. These values will be used in subsequent stack deployments.

3. Database Deployment​

Deploy Amazon Aurora PostgreSQL within the VPC deployed earlier.

[ec2-user ~]aws cloudformation create-stack \
--region us-east-1 \
--stack-name db \
--template-body file://deploy/cloudformation/db.yaml \
--parameters \
ParameterKey=AppName,ParameterValue=myapp \
ParameterKey=EnvName,ParameterValue=dev \
ParameterKey=DBUserName,ParameterValue=postgreAdmin \ # Enter your preferred value
ParameterKey=DBUserPassword,ParameterValue=SuperSecurePass123 \ # Enter your preferred value of 8 characters or more
ParameterKey=VpcId,ParameterValue=vpc-01187493c944a7ff0 \ # Enter the value from VPC output tab
ParameterKey=PrivateSubnet1,ParameterValue=subnet-0ba1ff7efe656281e \ # Enter the value from VPC output tab
ParameterKey=PrivateSubnet2,ParameterValue=subnet-0007df266992e3a06 \ # Enter the value from VPC output tab
--capabilities CAPABILITY_NAMED_IAM

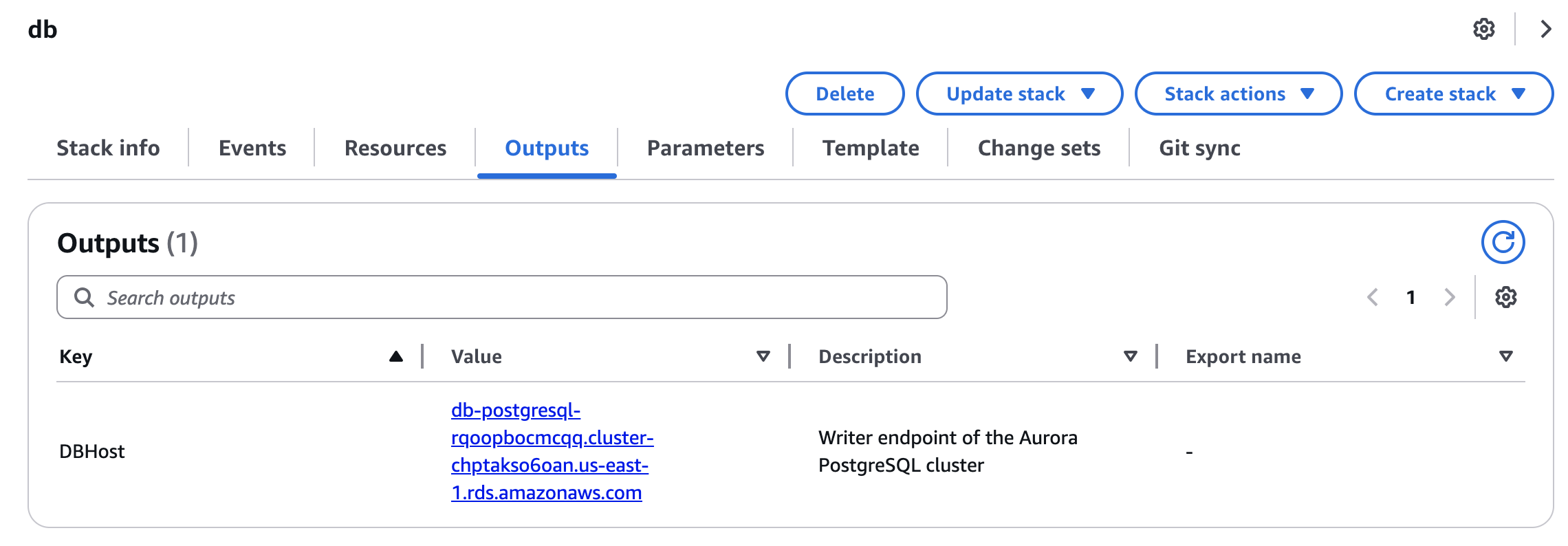

After DB deployment is complete, check the Aurora cluster writer instance endpoint from the output tab in Management Console.

4. Deploy API Gateway + Lambda CloudFormation Stack​

Similarly, deploy the stack using aws-cli.

[ec2-user ~]aws cloudformation create-stack \
--regio us-east-1 \
--stack-name apigateway-lambda \
--template-body file://deploy/cloudformation/apigateway-lambda.yaml \
--capabilities CAPABILITY_NAMED_IAM \
--parameters \
ParameterKey=AppName,ParameterValue=myapp \
ParameterKey=EnvName,ParameterValue=dev \
ParameterKey=VpcId,ParameterValue=vpc-01187493c944a7ff0 \
ParameterKey=PrivateSubnet1,ParameterValue=subnet-0ba1ff7efe656281e \
ParameterKey=PrivateSubnet2,ParameterValue=subnet-0007df266992e3a06 \
ParameterKey=S3SourceCodeBucket,ParameterValue=$BUCKET_NAME \
ParameterKey=S3SourceCodeKey,ParameterValue=api.zip \
ParameterKey=DbHost,ParameterValue=db-postgresql-rqoopbocmcqq.cluster-chptakso6oan.us-east-1.rds.amazonaws.com \ # Aurora cluster writer instance endpoint
ParameterKey=DbUser,ParameterValue=postgreAdmin \
ParameterKey=DbPassword,ParameterValue=SuperSecurePass123 \
ParameterKey=DbName,ParameterValue=mydb \
ParameterKey=AppLayerArn,ParameterValue=arn:aws:lambda:us-east-1:<Account ID>:layer:python-lambda-application-template-lib-layer:1 \  # Specify the ARN of python-lambda-application-template-lib-layer noted during package creation
ParameterKey=Psycopg3LayerArn,ParameterValue=arn:aws:lambda:us-east-1:<Account ID>:layer:psycopg3-layer:1  # Specify the ARN of psycopg3-layer noted during package creation

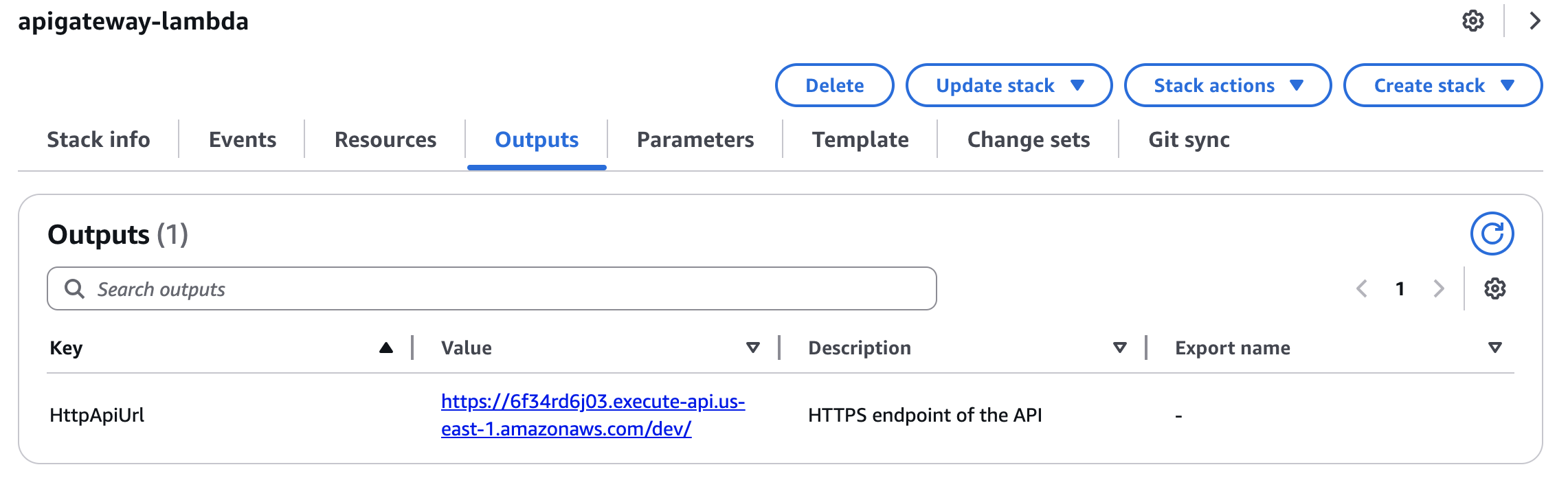

When deployment succeeds, the API endpoint will be displayed in the output tab. Let's use this to perform operation verification.

5. Deploy S3 Event + Lambda CloudFormation Stack​

[ec2-user ~]aws cloudformation create-stack \
--region us-east-1 \
--stack-name s3-lambda \
--template-body file://deploy/cloudformation/s3-lambda.yaml \
--capabilities CAPABILITY_NAMED_IAM \
--parameters \
ParameterKey=AppName,ParameterValue=myapp \
ParameterKey=EnvName,ParameterValue=dev \
ParameterKey=VpcId,ParameterValue=vpc-01187493c944a7ff0 \
ParameterKey=PrivateSubnet1,ParameterValue=subnet-0ba1ff7efe656281e \
ParameterKey=PrivateSubnet2,ParameterValue=subnet-0007df266992e3a06 \
ParameterKey=S3SourceCodeBucket,ParameterValue=$BUCKET_NAME \
ParameterKey=S3SourceCodeKey,ParameterValue=event.zip \
ParameterKey=DbHost,ParameterValue=db-postgresql-rqoopbocmcqq.cluster-chptakso6oan.us-east-1.rds.amazonaws.com \
ParameterKey=DbUser,ParameterValue=postgreAdmin \
ParameterKey=DbPassword,ParameterValue=SuperSecurePass123 \
ParameterKey=DbName,ParameterValue=mydb \
ParameterKey=AppLayerArn,ParameterValue=arn:aws:lambda:us-east-1:<アカウントID>:layer:python-lambda-application-template-lib-layer:1 \
ParameterKey=Psycopg3LayerArn,ParameterValue=arn:aws:lambda:ap-northeast-1:<アカウントID>:layer:psycopg3-layer:1

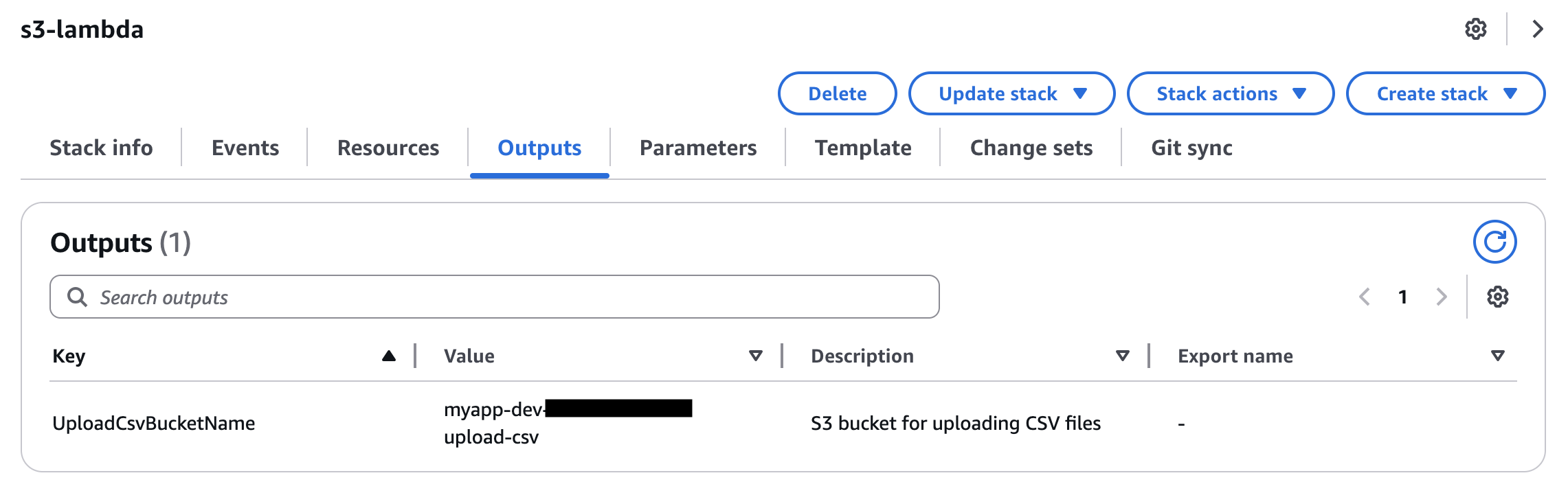

When deployment succeeds, an S3 bucket that triggers events will be created. When you upload user data CSV files here, Lambda functions will start and data will be created in the DB.

Operation Verification​

Great work! You can perform operation verification from this page.
